Oil Bars | P/N 23102G

Oil Bars

23102G Oil Bar, Single Tap

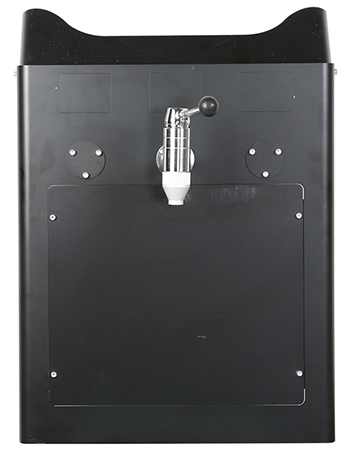

23102G Oil Bar, Shown without Drain Attached

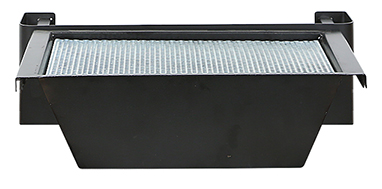

23102G Drip Tray

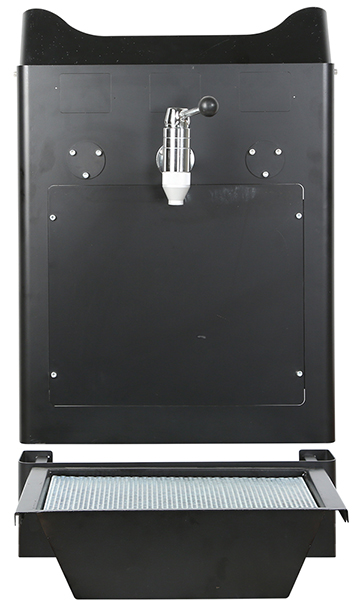

23102G Oil Bar, Shown without Drain Separated

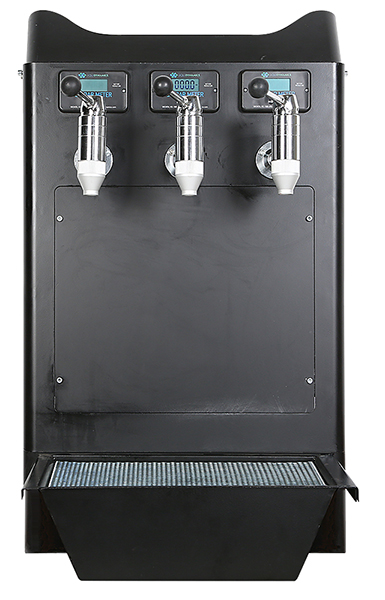

23102G-3M Oil Bar w/ Three Taps and Meters

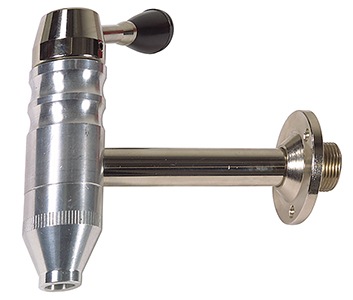

23105G Automatic Tap for Oil Bars

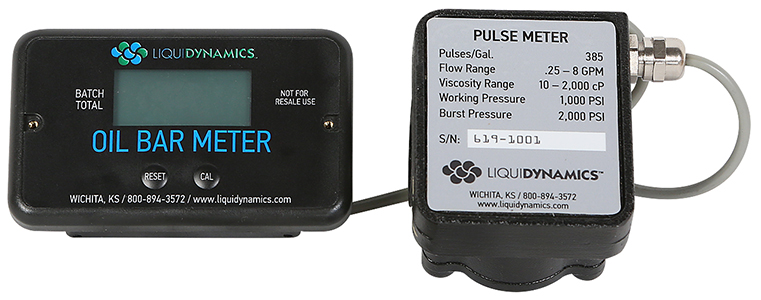

950113 Electronic Meter Kit for Oil Bars

Description

Oil Bars are a simple and ideal solution for quick and easy dispensing of fluids such as engine oil, gear oil, ATF, hydraulic fluid and 100% antifreeze. Each Oil Bar is supplied with one tap and removable oil drip tray and will accommodate up to three taps and meters. These Oil Bars allow flexibility in mounting to accommodate larger containers as shown below. Oil Bars are designed for use with 1:1 ratio pneumatic pumps which provide adequate pressure for dispensing but not so much pressure that would cause a spraying problem.

P/N 23102G

The upper and lower section of this Oil Bar may be mounted separately (as shown) or close together, in order to accommodate different containers/applications therefore provides the user maximum flexibility. This Oil Bar is supplied with one tap and can accommodate a total of three taps, order additional P/N 23105G taps as needed.

Optional Configurations Available:

P/N 23102G-1M

Same as P/N 23102G but supplied with one oil tap and one meter

P/N 23102G-2M

Same as P/N 23102G but supplied with two oil taps and two meters

P/N 23102G-3M

Same as P/N 23102G but supplied with three oil taps and three meters

P/N 23105G

Oil bar tap for use with the P/N 23102G Oil Bar, has spring loaded “Non-Locking” feature for dispensing engine oil and antifreeze, 1/2” NPTF inlet.

P/N 23105GL

Oil bar tap for use with the P/N 23102G Oil Bar, has locking “Lock Open” feature for dispensing of engine oil and antifreeze, 1/2” NPTF inlet.

P/N 950113

Electronic meter kit for use with P/N 23102G Oil Bar. Kit includes an electronic module with LCD display powered by 4 ea. AAA alkaline batteries. The four-digit display has a resettable batch total and a non-resettable cumulative total. Units of measure are shown on the LCD display and are easily changed from quarts to pints, gallons or liters, cumulative total indicates gallons or liters. For use w/ oil, hydraulic fluid, and 100% antifreeze.
