Spring Rewind Hose Reel – Large Capacity| P/N 88503-100L

Spring Rewind Hose Reel – Large Capacity | P/N 88503-100L

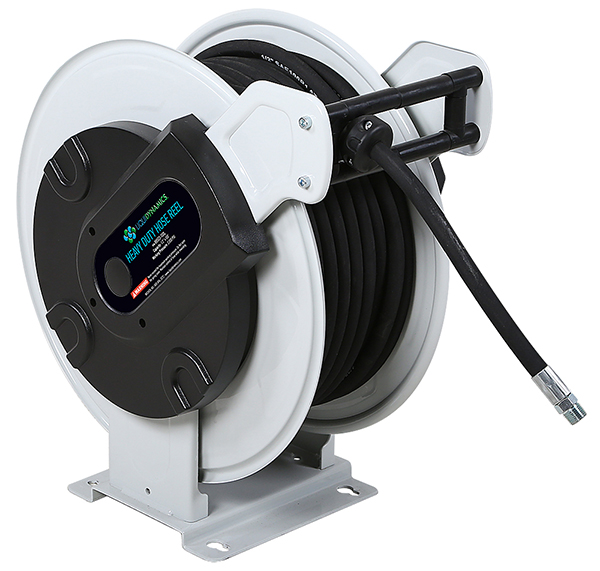

Large Capacity Spring Rewind Hose Reel

Description

High capacity reel features double pedestal and double arm, all metal construction for superior strength and rigidity. This reel has a powder coated finish to ensure long lasting durability and appearance. Reel is suitable for use with air, water, antifreeze and oil products and is supplied complete with 1/2? x 100´ hose rated to 2,000 PSI working pressure, ball stop and 1/2? x 4´ connection hose. The adjustable arms provide floor, wall or ceiling mount capability.

Swivel inlet fitting is 1/2? NPTF, connection hose is 1/2? NPTM rigid x 1/2? NPTM swivel, discharge hose fitting is 1/2? NPTM rigid.

Reel dimensions are 14.5? W x 23? D x 24.8? H, reel weight (empty) including hose is 133 lb.
