Model LD250 w/ Rigid Spout & Auto Tip| P/N 100200-RA

Model LD250 w/ Rigid Spout & Auto Tip | P/N 100200-RA

Meter with Handle & Swivel

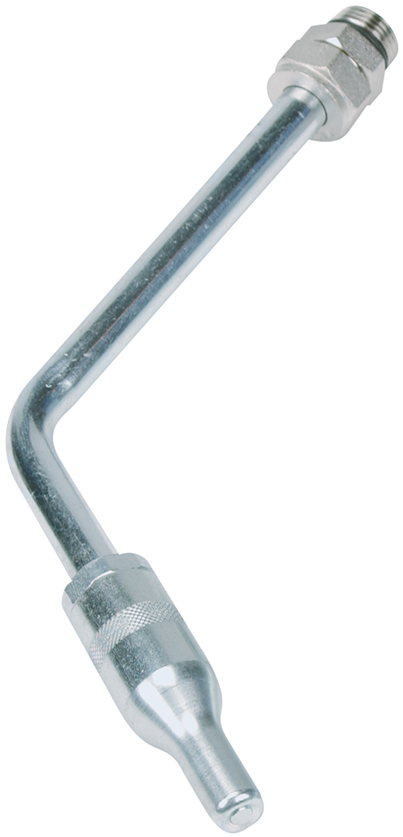

Rigid Spout Automatic Tip

See Other Models:

Description

These compact and lightweight, electronic digital meters provide the user with a cost effective method for measuring fluids such as engine oil, gear oil, transmission fluid, and 100% antifreeze (ethylene glycol). Two rotating oval gears are used to provide a simple, reliable method of measurement. Meters are powered by two field replaceable AAA alkaline batteries, with a minimum one year life expectancy. Accuracy is +/- 0.5% over a flow range of 0.26 to 8 GPM and maximum operating pressure of 1,000 PSI, inlet is 1/2” NPTF swivel.

The units of measure are shown on the LCD display and are easily changed from quarts to pints, gallons r liters, cumulative total indicates gallons (or liters).

P/N 100200-RA

Meter includes rigid spout and auto tip

P/N 100200T-RA

Meter includes rigid spout and auto tip with trigger lock
