LD25 Mechanical Meter w/ Flex Spout & Manual Tip| P/N 100395-FM

LD25 Mechanical Meter w/ Flex Spout & Manual Tip | P/N 100395-FM

Description

The Liquidynamics LD25 mechanical meter is designed to be simple and reliable and is intended for use with engine oils, gear oils, ATF, hydraulic fluids and 100% antifreeze. Oval gear technology is used to measure the amount of fluid passing through the measuring chamber. The oval gears then drive a simple mechanical counter to provide high accuracy measurement with low pressure loss. The Ld25 has a 4 digit (999.9), resetable batch total, which indicates quarts dispensed and a 6 digit non-resetable, cumulative total, which indicates cumulative gallons dispensed.

A die cast aluminum body provides a strong housing that is rated to 1,000 PSI operating pressure and 3,000 PSI burst pressure. The control handle features an inlet strainer to protect the valve and oval gears, while a trigger guard prevents accidental activation. A “balanced” valve design reduces trigger pressure and allows gradual starting and stopping of fluid flow. The Ld25 mechanical meter is available in a wide variety of nozzle configurations to fit most any application, 0.3 - 8 GPM flow range.

P/N 100395-FM

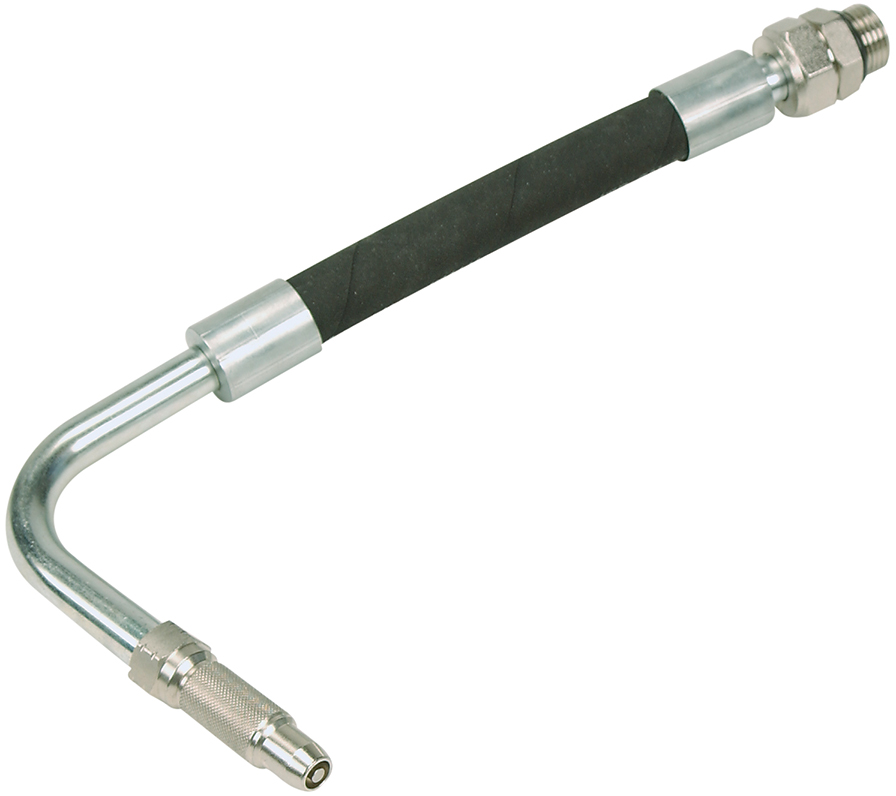

Mechanical Meter includes Control Handle, Flex Spout and Manual Tip
